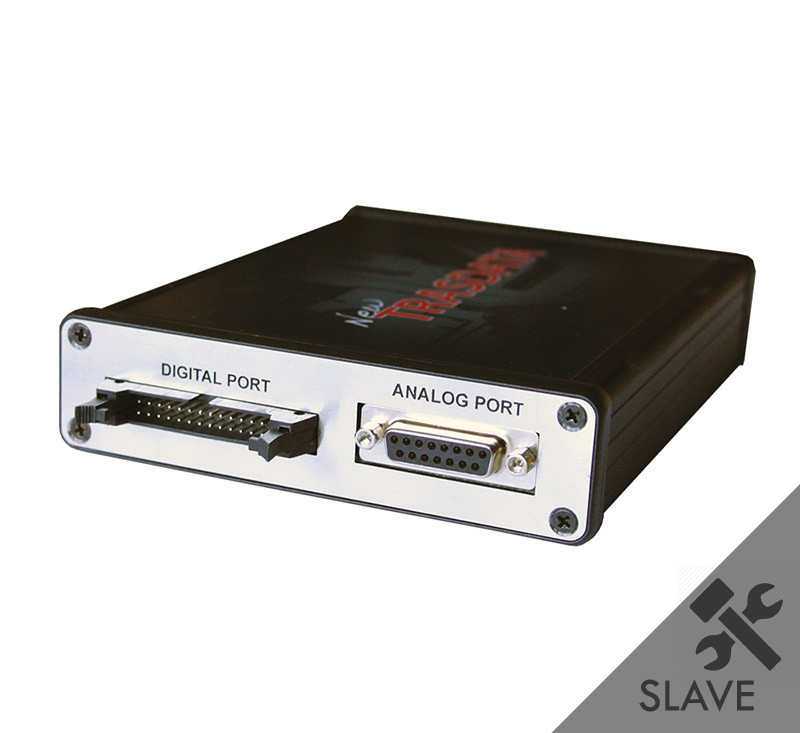

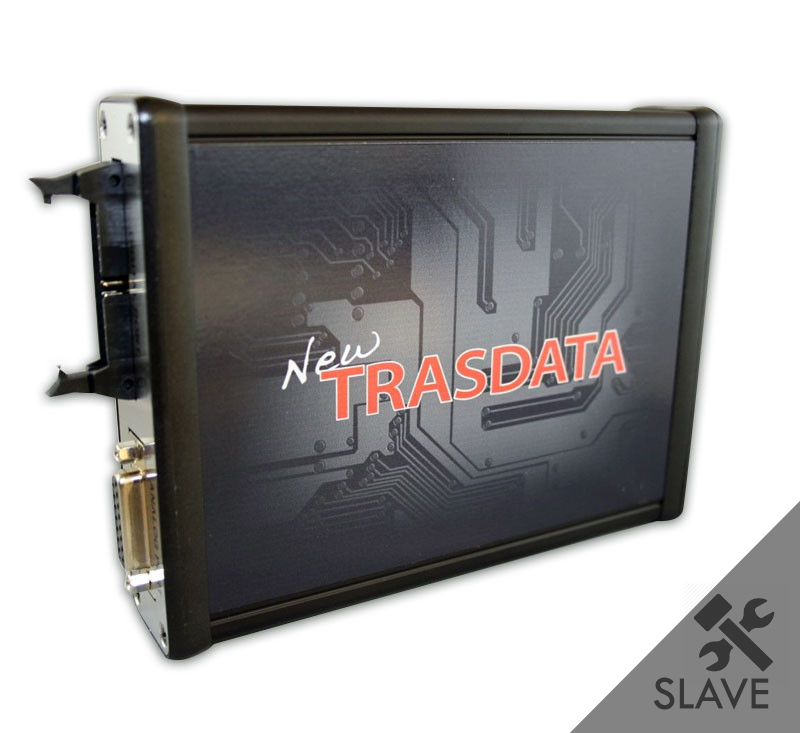

NEW TRASDATA SLAVE TOOL

NEW TRASDATA BDM / JTAG / BOOT READING /PROGRAMMING
MASTERHARDWARE SET
(CPU ACTIVATIONS MUST BE ADDED)

Includes:
- NEW TRASDATA Reader/Programmer (F34NEWTRASDATA)
- Power feeding kit with international plugs (C32GNALIM12)
- Power feeding cable with clamps (F34GN003)
- DB15 adapter for MEDC17 ECUs boot reading/programming (F32GN037-C)
- USB cable for PC/laptop connections (C32GNUSB01)
- Flat cables and strips - connecting kit to ECU board (K34NT-S1)
- Board/wires to be soldered for DELPHI 01 ECUs (DCM) (F34NTA03)
- Board/wires to be soldered for SIEMENS SIDxxx-BOSCH EDC7 ECUs (F34NTA06)
- Board/wires to be soldered for DELPHI 02 ECUs (DCI) (F34NTA09)
- Board/wires to be soldered for MOTOROLA MC68xxx (F34NTA11)
- Board/wires to be soldered for EFI ECUs with MOTOROLA MPC56X CPU (F34NTA12)
- OBDII K/CAN2.0 socket for New Trasdata (F34NTA14)
- Coloured flat cable with pigtail wires for CAN & GPT IDC26-16 operations (BOSCH MED17) (F34NT015)
- DB15 cable-adapter for CAN & GPT operations (BOSCH EDC17) (F32GN038)

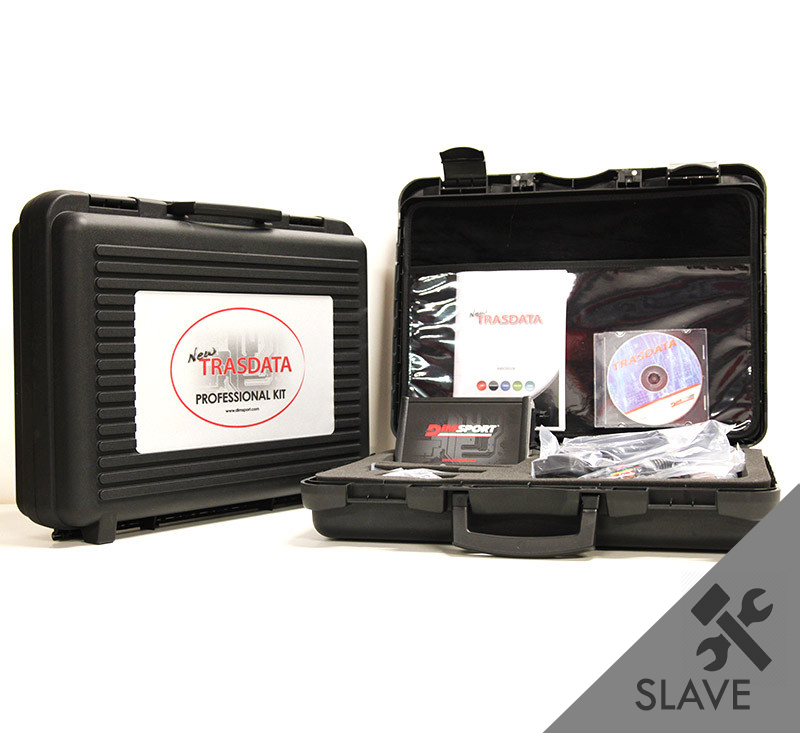

- New Trasdata specific case (ABS plastic bag shaped with a specific dig for each item, K34NTVAL01)

Check the vehicle list here





SELECT DESIRED PROTOCOLS

Download vehicle list

Product accessories

Price
600,00
